DURA-THRUST

Linear Thrusters
ET-Series

DURA-THRUST ET Series of Linear Thrusting Devices provide a practical, low-cost, economy approach to automatic working positioning/holding. The ET series is designed for applications where all the features of our LT series are not required, while still offering the quality construction and durability you’ve come to expect.

FEATURES

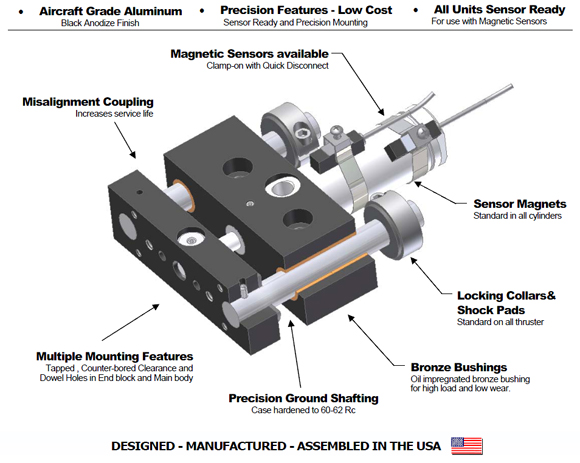

DURA-THRUST ET Series are externally powered by standard non-repairable air cylinders. The slide bearings are oil impregnated bronze bushings. Rods are pinned to the end blocks to assure positive location. Adjustable shaft mounted locking collars with nylon bumper pads allow easy setup and provide low noise level minimizing the clatter inherent in fast acting slide devices. Furthermore the entire ET series is sensor ready.

MOUNTING STYLES

DURA-THRUST ET Series units can be mounted and located in any plane with provided mounting holes and dowel pin holes. The body section contains both tapped holes and counter bored clearance holes for cap screws. The end plate contains the same features for easy adaptations to addition work moving/holding devices or customer tooling.

The ET series of economy thrusters are perfect for simple applications such as part ejection, part stops, lifting tables, and clamps.

ET Series SPECIFICATIONS

Rod material - Case hardened ground steel rods
Block material - 6061 Aluminum – Hard Coat (black)
Type of cylinder – Non-repairable Double acting
Air requirement – 100 psi MAX

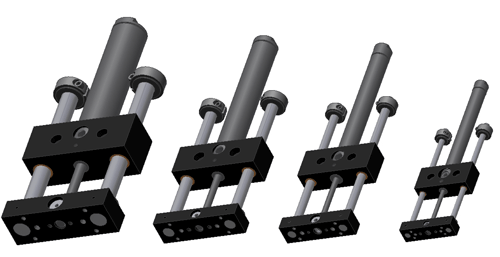

	ET-1 9/16" Cylinder Bore Diameter Rod Diameter - 0.250" Standard stroke lengths: (inch) 1 - 4” with 1” increments (mm) 25.4 – 101.6 with 25.4 increments Catalog Pages: Zipped PDF CAD Files: 2D&3D / PDF
	ET-2 3/4" Cylinder Bore Diameter Rod Diameter - 0.375" Standard stroke lengths: 1” - 8” with 1” increments (mm) 25.4 – 203.2 with 25.4 increments Catalog Pages: Zipped PDF CAD Files: 2D&3D / PDF
	ET-3 1-1/16" Cylinder Bore Diameter Rod Diameter - 0.500" Standard stroke lengths: 1” - 10” with 1” increments (mm) 25.4 – 254 with 25.4 increments Catalog Pages: Zipped PDF CAD Files: 2D&3D / PDF
	ET-4 1-1/2" Cylinder Bore Diameter Rod Diameter - 0.750" Standard stroke lengths: 1” - 12” with 1” increments (mm) 25.4 – 304.8 with 25.4 increments Catalog Pages: Zipped PDF CAD Files: 2D&3D / PDF
