DURA-THRUST
Linear Thrusters
 LT-Series

DURA-THRUST LT Series of Linear Thrusting Devices provide industry leading quality and durability for automatic working positioning/holding. The LT series is designed for high demanding applications where precision and durability are required.

FEATURES

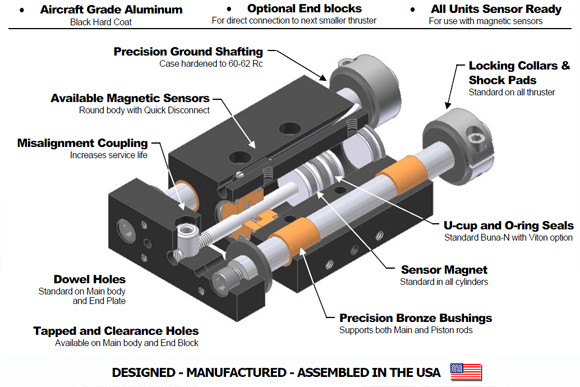

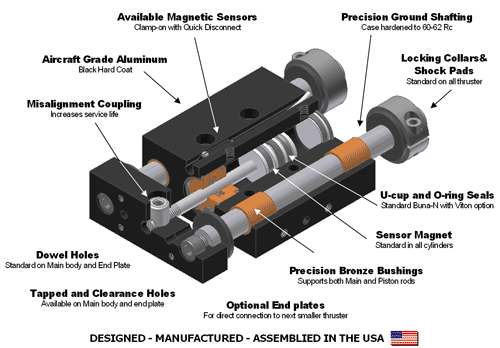

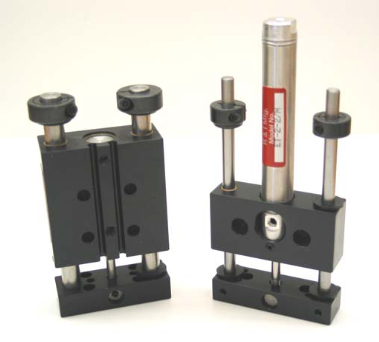

DURA-THRUST LT Series are internally powered by fully field repairable air cylinders. The slide bearings are oil impregnated bronze bushings. Rods are bolted to the end blocks to assure positive location and rigidity. Adjustable shaft mounted locking collars with nylon bumper pads allow easy setup and provide low noise level minimizing the clatter inherent in fast acting slide devices. Furthermore the entire LT series is sensor ready.

MOUNTING STYLES

DURA-THRUST LT Series units can be mounted and located in any plane with provided mounting holes and dowel pin holes. The main body contains counterbored clearance holes for cap screws and optional tapped holes for mounting with dowel pin holes for precise location. The end plate contains tapped and dowel pin holes for easy adaptations to additional work moving/holding devices or customer tooling. Optional end plates are also available for mounting 2 units together.


The LT series of linear thrusters are perfect for demanding
applications such as part assembly, part stops or location, lifting tables, and clamps.

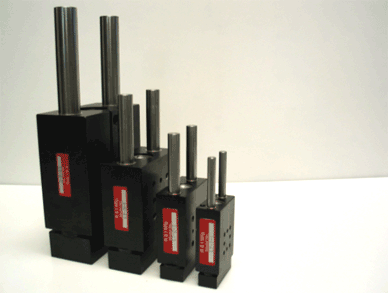

SPECS

LT-1

  • 7/16" Cylinder Bore Diameter
  • Rod Diameter - 0.250"
  • Standard stroke lengths: (inch) 1”, 2”
                                             (mm) 25.4, 50.8
  • CAD library / Catalog Pages / PDF Print

LT-2

  • 9/16" Cylinder Bore Diameter
  • Rod Diameter – 0.375"
  • Standard stroke lengths: (inch) 1”, 2”
                                             (mm) 25.4, 50.8
  • CAD library / Catalog Pages / PDF Print

LT-3

  • 3/4" Cylinder Bore Diameter
  • Rod Diameter – 0.500"
  • Standard stroke lengths: (inch) 1”, 2”, 3”
                                             (mm) 25.4, 50.8, 76.2
  • CAD library / Catalog Pages / PDF Print

LT-4

  • 1 1/8" Cylinder Bore Diameter
  • Rod Diameter – 0.750"
  • Standard stroke lengths: (inch) 2”, 3”, 4”
                                            (mm) 50.8, 76.2, 101.6
  • CAD library / Catalog Pages / PDF Print

With free Acrobat Reader® software, you can view and print Adobe PDF files.
